Product Technical Specification & Customer Design Guidelines

Interfaces

Recommended characteristics for the buzzer:

 Electro-magnetic

 Impedance: 7 to 30 Ω

 Sensitivity: 90 dB SPL min @ 10 cm

 Current: 60 to 90 mA

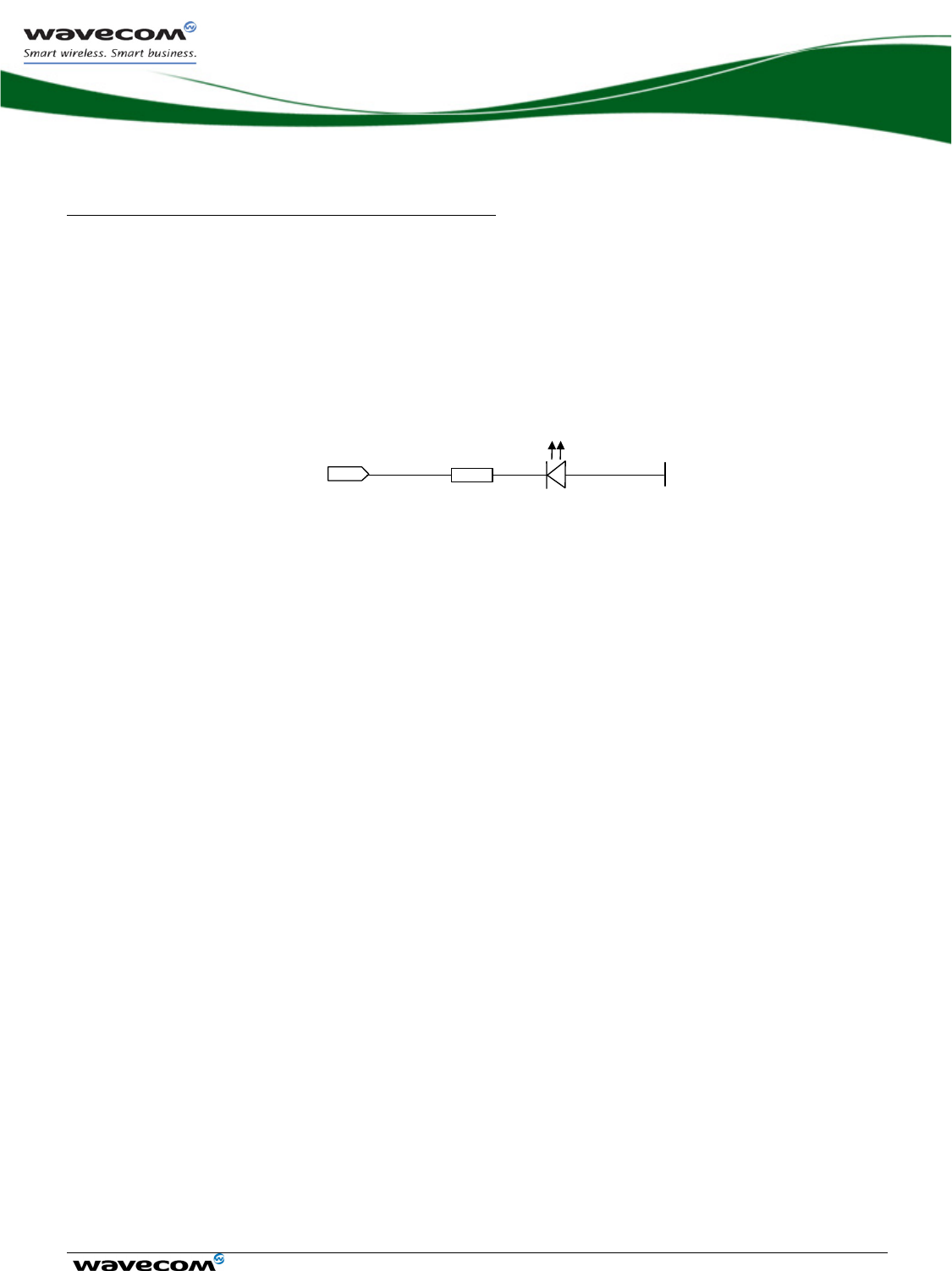

The BUZZER output can also be used to drive a LED as shown in the Figure below:

BUZZER

VCC

« BUZZER »

470 Ω

Figure 25: Example of LED driven by the BUZZER output

R1 value can be set according to the LED (D1) characteristics.

Page: 69 / 116

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without

prior written agreement.

WA_DEV_Q64_PTS_001-003 January 9, 2009
